Description

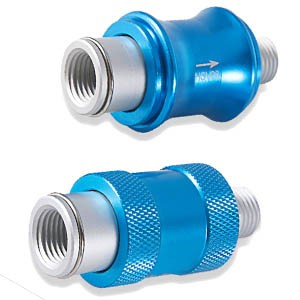

MS HSV series sliding hand valve pneumatic
Ordering code
| HSV | / | 8 | / | SS |
| Model name | Tube size | Dovt Thread | ||
| Hand slide valve | 06: G1/8 | Blank: Standard | ||
| 08: G1/4 | SS: Double male thread | |||
| 10: G3/8 | FF: Double female thread | |||
| 15: G1/2 | SF: Male and female thread |
Specifications
| Model | HSV-06 | HSV-08 | HSV-10 | HSV-15 |
| Fluid | Air | |||
| Operation | Manual control direct acting type | |||
| Port size | G1/8 | G1/4 | G3/8 | G1/2 |
| CV Value | 1.28MM | 2.2MM | 3.5MM | 7.8MM |
| Value type | 3/2way | |||
| Lubrication | Not required | |||
| Pressure range | 0-1.0Mpa | |||
| Proof pressure | 1.5Mpa | |||
| Temperature | -20-70℃ | |||
| Material body | Aluminum alloy | |||
