Description

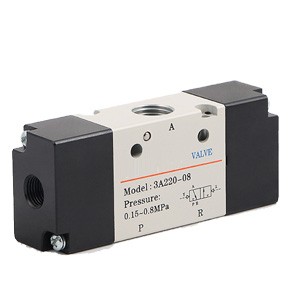

3A series air control pulse valve pneumatic
Model: 3A110, 3A120, 3A210, 3A220, 3A310, 3A320
Media: Air
Action mode: Exterior control
Position: 3/2 port
Working pressure: 0.15-0.8Mpa
Proof pressure: 1Mpa
Working temperature: 0-60℃
Max operating frequency: 5 cycle per second
Effective sectional area: 5.5mm2(Cv=0.31), 12.0 mm2(Cv=0.67), 14.0 mm2(Cv=0.78), 16 mm2(Cv=0.89), 25 mm2(Cv=1.39), 30 mm2(Cv=1.67)
Valve port size: input=output=M5*0.8, input=output=G1/8, input=output=G1/4, input=output=G3/8
