Description

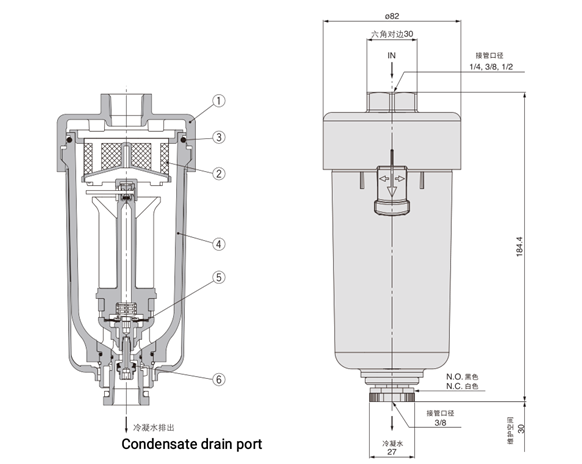

SMC type AD402-A pneumatic auto drain
| Ordering code | ||||||
| AD402-A | - | 04 | C | |||
| Series No. | Thread type | Thread size interface | Drainage mode | Cup type | Accessories | |
| Blank:RC | 03 | C:N.C. | Blank:Transparent cup | Blank:without fittings | ||
| N:NPT | 04 | D:N.O. | Polycarbonate cup | V:with exhaust valve | ||
| F:G | 2:Metal cup | |||||
| 6:Nylon cup | ||||||
| Common specifications | |
| Model | AD402-A |
| Auto drain way | Float-type |
| Auto drain valve type | N.C.(Normally closed) N.O.(Normally open) |
| Working medium | Compressed air |
| Environmetal temperature and working fluid temperature | -5~60℃(not frozen) |
| Ensure pressure resistance | 1.5Mpa |
| Max working pressure | 1.0Mpa |
| working pressure range | N.C.:0.15~1.0Mpa N.O.:0.1~1.0Mpa |
| Connection port size | 1/4,3/8,1/2 |
| Condensate exhaust port size | 3/8 |
| Material of cup | Polycarbonate |
| Material of cup cover | Polycarbonate |
| Weight | 0.46kg |
| Color of appearance | Silver white |
