Description

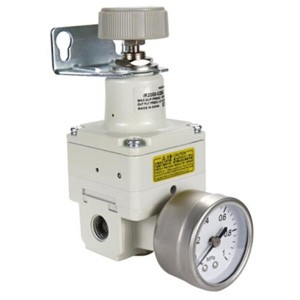

SMC type IR1000-3000 proof lubricatorseries explosion proof rfl pneumatic air combination unit regulator mini festo filter smc series
| Ordering code | - | - | 00 | - | 2 | |
| IR | 10 | Thread size | Thread type | Thread size | ||
| Series No. | Shell size | 00(0.005-0.2Mpa) | Blank:RC | 01/02 | ||
| 20 | 10(0.01-0.4Mpa) | N:NPT | 03/04 | |||
| 30 | 20(0.01-0.8Mpa) | F:G |

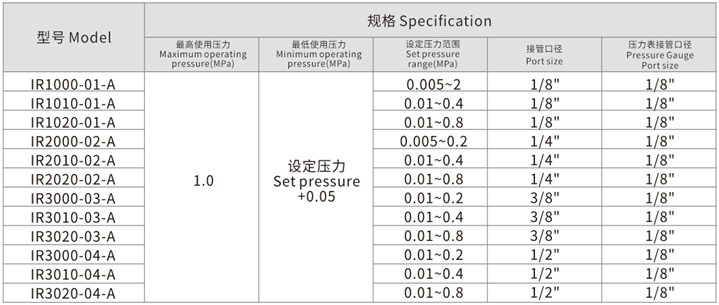

Specification
| Sensitivity | Within 0.2% of full value |
| Repeat accuracy | Within 0.5% of full value |
| Air consumption | ＜1L/min(ANR) |
| Ambient and fluid emperature | -5~60℃(Not frozen) |

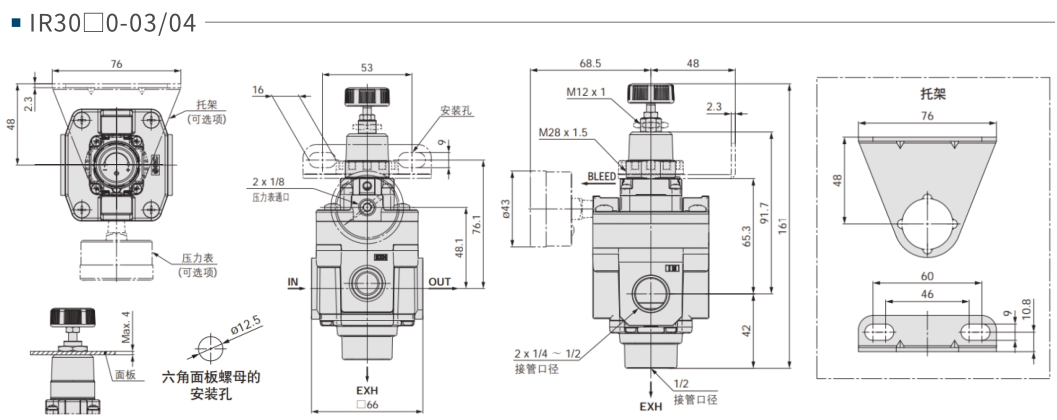

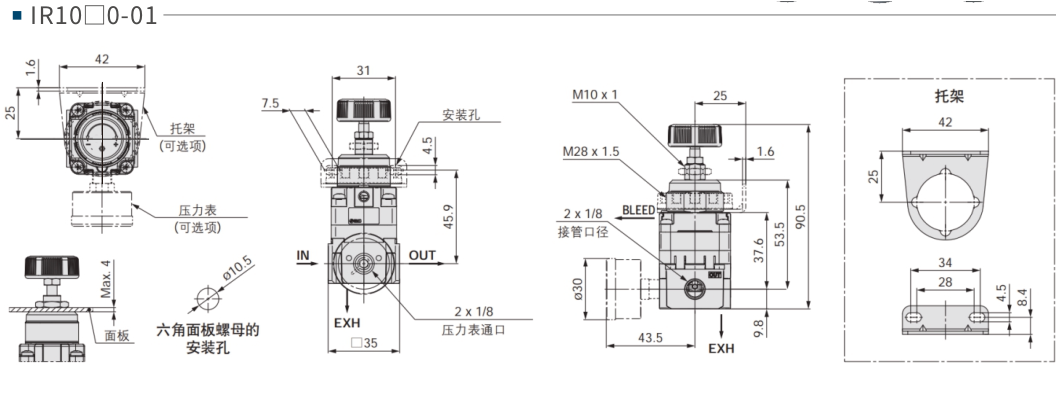

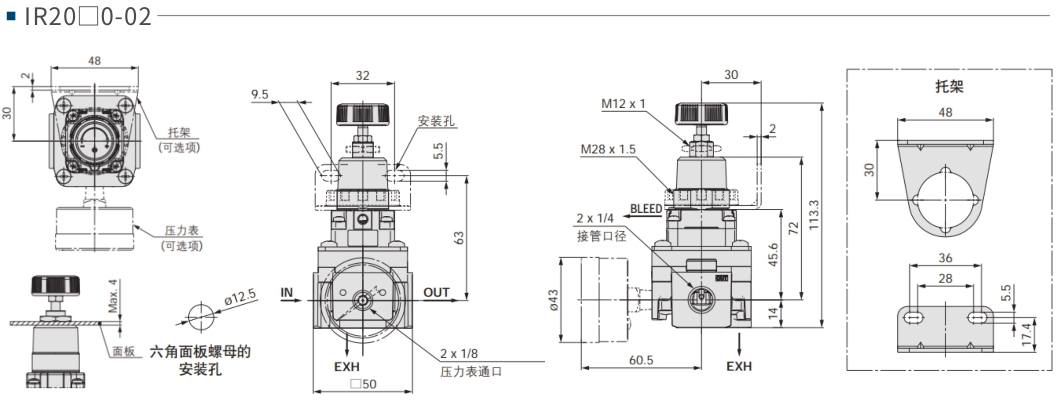

Dimension
