Description

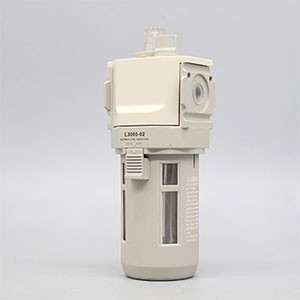

Pneumatic air lubricator L1000-4000 CKD type air treatment unit
| L | 3000 | / | 02 |
| Lubricator | Body Size | Port size | |
| 1000 | 01: 1/8 | ||
| 2000 | 02: 1/4 | ||
| 3000 | 03: 3/8 | ||
| 4000 | 04: 1/2 | ||
| 06: 3/4 | |||
| 10: 1 |
| Model | L1000-01 L1000-02 | L3000-02 L3000-03 | L4000-03 L4000-04 | L8000-06 L8000-10 |
| Use fluid | Air | |||
| Pressure resistance | 1.5Mpa | |||
| Working pressure | 1.0Mpa | |||
| Operating temperature range | 5-60℃ | |||
| Set pressure range | 0.05-0.85Mpa | |||
| Oil dripping | 0.015m³/min | 0.035m³/min | 0.065m³/min | |
| Oil storage | 20cm³ | 85cm³ | 170cm³ | |
| Oil type | Turbine #1 Oil | |||
| Port size | 1/8,1/4 | 1/4,3/8,1/2 | 3/8,1/2 | 3/4,1 |
