Description

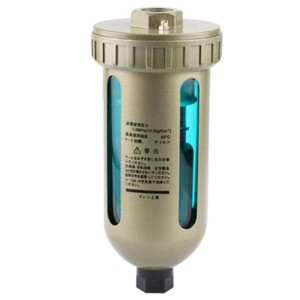

SMC type AD402 pneumatic auto drain
| Ordering code | |||
| AD402 | - | 04 | |
| Series No. | Thread type | Thread size interface | |
| Blank:RC | 03 | ||
| N:NPT | 04 | ||
| F:G | |||
| Model | AD402 |
| Ensure pressure resistance | 1.5Mpa |
| Maximum working pressure | 1.0Mpa |
| Working pressure range | 0.1-1.0Mpa |
| Environmetal temperature and working meduim temperature | -5℃~60℃(When not frozen) |
| Connection port size | 3/8,1/2 |
| Drain port size | 3/8 |
| Weight | 620g |
