Description

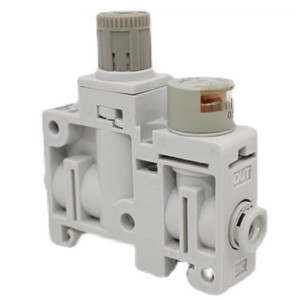

Shinyee pneumatic SMC type ARM5SA-06(16)A tiny compact manifold pressure reducing valve
| Ordering code | ||
| ARM5SA | - | 06A |
| 06:Φ4 | ||
| 08:Φ6 | ||
| Specifications | |
| Proof pressure | 1.5MPa(15.3kgf/cm2) |
| Max.working pressure | 1.0MPa(10.2kgf/cm2) |
| Environmental&fluid temperature | 5~60℃ |
| Pressure regulating range | 0.05~0.7Mpa |

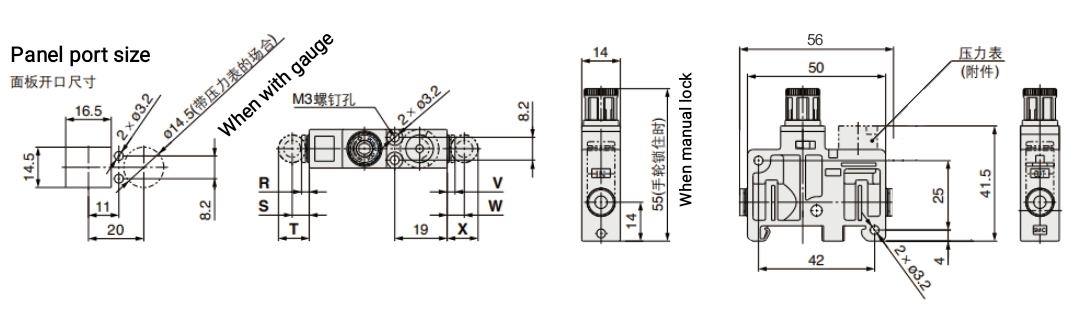

Dimension
