Description

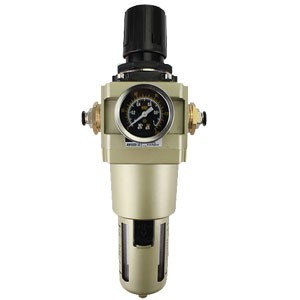

AW series filter regulator valve pneumatic
| Model | AW1000-M5 | AW2000-01 | AW2000-02 | AW3000-02 | AW3000-03 | AW4000-03 | AW4000-04 | AW4000-06 | AW5000-06 | AW5000-10 |
| Port Size | M5*0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 | G3/4 | G3/4 | G1 |
| Pressure Gange Port Size | M5*0.8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/4 | PT1/4 | PT1/4 | PT1/4 | PT1/4 |
| Rated Flow(L/Min) | 100 | 550 | 550 | 2000 | 2000 | 4000 | 4000 | 4500 | 5500 | 5500 |
| Working Media | Compressed Air | |||||||||
| Proof Pressure | 1.5Mpa | |||||||||
| Range of Regulation | 0.05~0.7Mpa | 0.05~0.85Mpa | ||||||||
| Ambient Temperature | 5~60℃ | |||||||||
| Filter Precision | 40μm(Normal) or 5μm(Customized) | |||||||||
| Body material | Aluminum Alloy | |||||||||
| Bracket(one) | B120 | B220 | B320 | B420 | ||||||
| Pressure Gange | Y25-M5 | Y40-01 | Y50-02 | |||||||
| Material | Body Material | Aluminum Alloy | ||||||||
| Cup Material | PC | |||||||||
| Cup Cover | AW100~AW2000: without AW3000~AW5000: with(Steel) | |||||||||
