Description

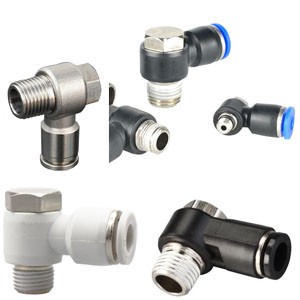

PH swing elbow pneumatic connector
Model | Φd | R | A | B | H | F | J |
PH4-M5 | 4 | M5 | 4 | 19 | 8 | 19 | 11 |
PH4-01 | 4 | PT1/8 | 8 | 25 | 12 | 22 | 14.5 |
PH4-02 | 4 | PT1/4 | 10 | 28 | 15 | 24 | 17.5 |
PH6-M5 | 6 | M5 | 4 | 19 | 8 | 22.5 | 11 |
PH6-01 | 6 | PT1/8 | 8 | 25 | 12 | 25 | 14.5 |
PH6-02 | 6 | PT1/4 | 10 | 28 | 15 | 27 | 17.5 |
PH6-03 | 6 | PT3/8 | 10 | 33 | 19 | 29.5 | 19.5 |
PH6-04 | 6 | PT1/2 | 11.5 | 36.5 | 22 | 30.5 | 21 |
PH8-01 | 8 | PT1/8 | 8 | 19 | 12 | 25.5 | 14.5 |
PH8-02 | 8 | PT1/4 | 10 | 25 | 15 | 27.5 | 17.5 |
PH8-03 | 8 | PT3/8 | 10 | 33 | 19 | 30 | 19.5 |
PH8-04 | 8 | PT1/2 | 11.5 | 36.5 | 22 | 31 | 21 |
PH10-01 | 10 | PT1/8 | 8 | 19 | 15 | 26.5 | 14.5 |
PH10-02 | 10 | PT1/4 | 10 | 25 | 15 | 28.5 | 17.5 |
PH10-03 | 10 | PT3/8 | 10 | 33 | 19 | 31 | 19.5 |
PH10-04 | 10 | PT1/2 | 11.5 | 36.5 | 22 | 32 | 21 |
PH12-02 | 12 | PT1/4 | 10 | 25 | 15 | 29.5 | 17.5 |
PH12-03 | 12 | PT3/8 | 10 | 33 | 19 | 32 | 19.5 |
PH12-04 | 12 | PT1/2 | 11.5 | 36.5 | 22 | 33 | 21 |
