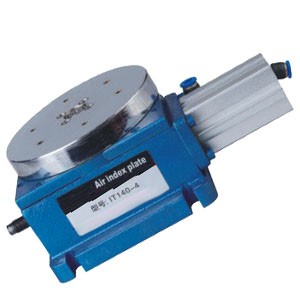

IT series horizontallndexing fractional plate pneumatic
Model: IT140, IT180, IT250, IT320
Aliquots specification: 3, 4-8, 9-16,
Aliquots accuracy: +/-0.02℃
Frequency seconds/time: 1.5, 2, 1, 1.2, 1.5
Weight KG: 13, 18, 50, 87
Aluminum plate max installation diameter mm: 280, 400, 600, 800
Max load: 20, 30, 60, 100
Inertia: 16, 18, 20, 22, 25, 30, 35, 40, 50, 65, 70, 85
Working pressure range: 0.6-0.7Mpa
Cylinder type: thin cylinder with magnet
Buffering type: oil buffer
