Description

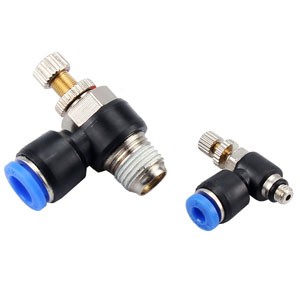

JSC speed control hand valve
Thread side | Tube side | Φd | R | A | B | H | F | J |
JSC4-M5 | JSC4-M5A | 4 | M5 | 4 | 28 | 8 | 19 | 11 |
JSC4-01 | JSC4-01 A | 4 | PT1/8 | 8 | 25 | 12 | 22 | 14.5 |
JSC4-02 | JSC4-02 A | 4 | PT1/4 | 10 | 43 | 15 | 24 | 17.5 |
JSC6-M5 | JSC6-M5 A | 6 | M5 | 4 | 28 | 8 | 22.5 | 11 |
JSC6-01 | JSC6-01 A | 6 | PT1/8 | 8 | 25 | 12 | 25 | 14.5 |
JSC6-02 | JSC6-02 A | 6 | PT1/4 | 10 | 43 | 15 | 27 | 17.5 |
JSC6-03 | JSC6-03 A | 6 | PT3/8 | 10 | 46 | 19 | 29.5 | 19.5 |
JSC6-04 | JSC6-04 A | 6 | PT1/2 | 11.5 | 50 | 22 | 30.5 | 21 |
JSC8-01 | JSC8-01 A | 8 | PT1/8 | 8 | 25 | 12 | 25.5 | 14.5 |
JSC8-02 | JSC8-02 A | 8 | PT1/4 | 10 | 43 | 15 | 27.5 | 17.5 |
JSC8-03 | JSC8-03 A | 8 | PT3/8 | 10 | 46 | 19 | 30 | 19.5 |
JSC8-04 | JSC8-04 A | 8 | PT1/2 | 11.5 | 50 | 22 | 31 | 21 |
JSC10-01 | JSC10-01 A | 10 | PT1/8 | 8 | 25 | 15 | 26.5 | 14.5 |
JSC10-02 | JSC10-02 A | 10 | PT1/4 | 10 | 43 | 15 | 28.5 | 17.5 |
JSC10-03 | JSC10-03 A | 10 | PT3/8 | 10 | 46 | 19 | 31 | 19.5 |
JSC10-04 | JSC10-04 A | 10 | PT1/2 | 11.5 | 50 | 22 | 32 | 21 |
JSC12-02 | JSC12-02 A | 12 | PT1/4 | 10 | 43 | 15 | 29.5 | 17.5 |
JSC12-03 | JSC12-03 A | 12 | PT3/8 | 10 | 46 | 19 | 32 | 19.5 |
JSC12-04 | JSC12-04 A | 12 | PT1/2 | 11.5 | 50 | 22 | 33 | 21 |
