Description

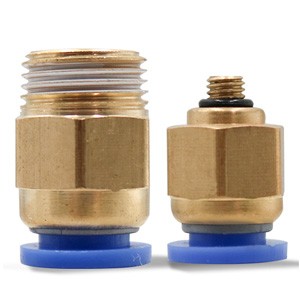

PC pneumatic male straight connector
Inch tube | Metric tube | D | R | A | B | H1 | d |
PC5/32-M5 | PC 04-M5 | Ф4 | M5 | 3.5 | 20.5 | 10 | 2 |
PC5/32-01 | PC 04-01 | Ф4 | 1/8 | 7 | 19.2 | 10 | 3 |
PC5/32-02 | PC 04-02 | Ф4 | 1/4 | 9 | 18 | 14 | 3 |
PC5/32-03 | PC 04-03 | Ф4 | 3/8 | 9 | 1 | 17 | 3 |
PC1/4-M5 | PC 06-M5 | Ф6 | M5 | 3.5 | 20.2 | 12 | 2 |
PC1/4-01 | PC 06-01 | Ф6 | 1/8 | 7 | 20.8 | 12 | 4 |
PC1/4-02 | PC 06-02 | Ф6 | 1/4 | 9 | 20.8 | 14 | 4 |
PC1/4-03 | PC 06-03 | Ф6 | 3/8 | 9 | 19 | 17 | 4 |
PC1/4-04 | PC 06-04 | Ф6 | 1/2 | 11 | 21.8 | 21 | 4 |
PC5/16-01 | PC 08-01 | Ф8 | 1/8 | 7 | 24 | 14 | 5 |
PC5/16-02 | PC 08-02 | Ф8 | 1/4 | 9 | 23.6 | 14 | 6 |
PC5/16-03 | PC 08-03 | Ф8 | 3/8 | 9 | 20.3 | 17 | 6 |
PC5/16-04 | PC 08-04 | Ф8 | 1/2 | 11 | 22.2 | 21 | 6 |
PC3/8-01 | PC 10-01 | Ф10 | 1/8 | 7 | 27.8 | 17 | 5 |
PC3/8-02 | PC 10-02 | Ф10 | 1/4 | 9 | 26.6 | 17 | 6 |
PC3/8-03 | PC 10-03 | Ф10 | 3/8 | 9 | 26.6 | 17 | 8 |
PC3/8-04 | PC 10-04 | Ф10 | 1/2 | 11 | 23.7 | 21 | 8 |
PC1/2-01 | PC 12-01 | Ф12 | 1/8 | 7 | 29.8 | 19 | 5 |
PC1/2-02 | PC 12-02 | Ф12 | 1/4 | 9 | 32 | 19 | 6 |
PC1/2-03 | PC 12-03 | Ф12 | 3/8 | 9 | 28.8 | 19 | 8 |
PC1/2-04 | PC 12-04 | Ф12 | 1/2 | 11 | 25.7 | 21 | 8 |
/ | PC 14-02 | Ф14 | 1/4 | 9 | 32.5 | 24 | 5 |
/ | PC 14-03 | Ф14 | 3/8 | 9 | 32.2 | 24 | 6 |
/ | PC 14-04 | Ф14 | 1/2 | 11 | 21.7 | 24 | 8 |
