Description

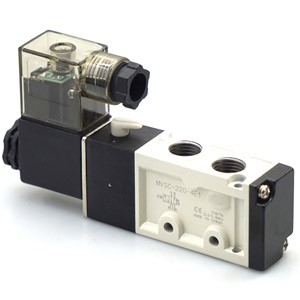

MVSC 220 260 330 solenoid valve pneumatic

Model: MVSC-220/260/300-4E1, MVSC-220/260/300-4E2, MVSC-220/260/300-4E2C, MVSC-220/260/300-4E2P, MVSC-220/260/300-4E2R

Media: Air

Action mode: Internal pilot

Position: 5/2 port, 5/3 port

E1: single coil

E2: double coil

C: three position closed

P: three position pressurized

R: three position exhaust

Working pressure: 0.15 -0.8Mpa

Proof pressure: 1Mpa

Working temperature: 0-60℃

Effective sectional area: 16mm²(Cv=0.89), 18mm²(Cv=1.0), 25mm²(Cv=1.4), 35mm²(Cv=1.94)

Valve port size: input=output=1/4, exhaust port=PT1/8; input=output=Exhuast port=PT1/8

Max operating frequency: 3 cycle and 5 cycle per second

Insulation level: F

Protection level: IP65(DIN40050)

Min excitation time: 0.05 second

Connecting type: plug connect

Working voltage: DC12V, DC24V, AC24V, AC110V, AC220V, AC380V

Voltage range: +/-10%
