Description

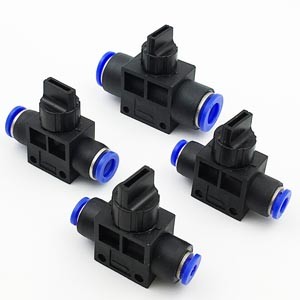

HVFF hand valve connector
Model | ΦD1 | ΦD2 | A | L | S | F | J | G |
HVFF-4 | 4 | 4 | 20 | 53 | 11.5 | 30 | 22 | 4 |
HVFF-6 | 6 | 6 | 20 | 54 | 11.5 | 30 | 22 | 4 |
HVFF-8 | 8 | 8 | 20 | 55 | 11.5 | 30 | 22 | 4 |
HVFF-10 | 10 | 10 | 21 | 69 | 11.5 | 34 | 26 | 4 |
HVFF-12 | 12 | 12 | 28 | 78 | 16 | 37 | 32 | 4 |
HVFF6-4 | 6 | 4 | 20 | 54 | 11.5 | 29 | 22 | 4 |
HVFF8-4 | 8 | 4 | 20 | 54 | 11.5 | 29 | 22 | 4 |
HVFF8-6 | 8 | 5 | 20 | 55 | 11.5 | 29 | 22 | 4 |
HVFF10-6 | 10 | 5 | 21 | 68 | 11.5 | 33 | 26 | 4 |
HVFF10-8 | 10 | 8 | 21 | 69 | 11.5 | 33 | 26 | 4 |
HVFF12-8 | 12 | 8 | 28 | 77 | 16 | 37 | 32 | 4 |
HVFF12-10 | 12 | 10 | 28 | 78 | 16 | 37 | 32 | 4 |
