Description

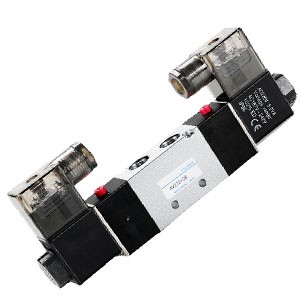

3V series solenoid valve pneumatic
Model: 3V110, 3V120, 3V210, 3V220, 3V310, 3V320
Media: Air
Action mode: Internal pilot type
Position: 3R: 3/2 port
Working pressure: 0.15 -0.8Mpa
Proof pressure: 1Mpa
Working temperature: 0-60℃
Effective sectional area: 5.5mm2(Cv-0.31), 12mm2(Cv=0.67), 14mm2(Cv=0.78), 16mm2(Cv=0.89), 30mm2(Cv=1.67)
Valve port size: input=output=M5*0.8, input=output=G1/8, input=output=G1/4, input=output=G3/8
Voltage: DC12V, DC24V, AC24V, AC110V, AC220V, AC380V
Voltage range: +/-10%
Insulation level: F level
Protection class: IP65(DIN40050)
Max operating frequency: 5 cycle per second
