Description

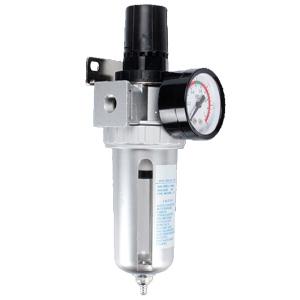

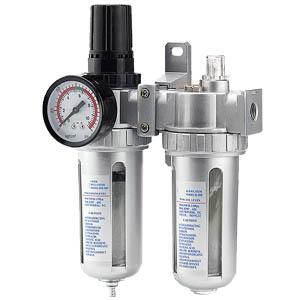

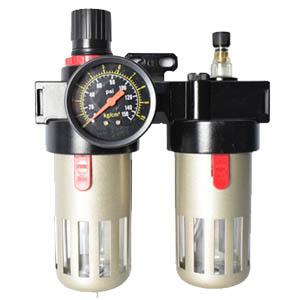

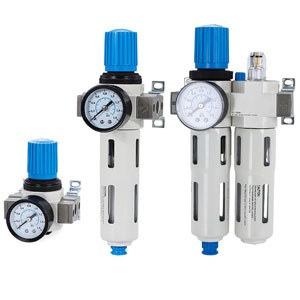

SHINYEE Pneumatics FRC LR HR MINI MAX Fluid Control Air Filter Regulator for festo type air source treatment pneumatic FRL unit

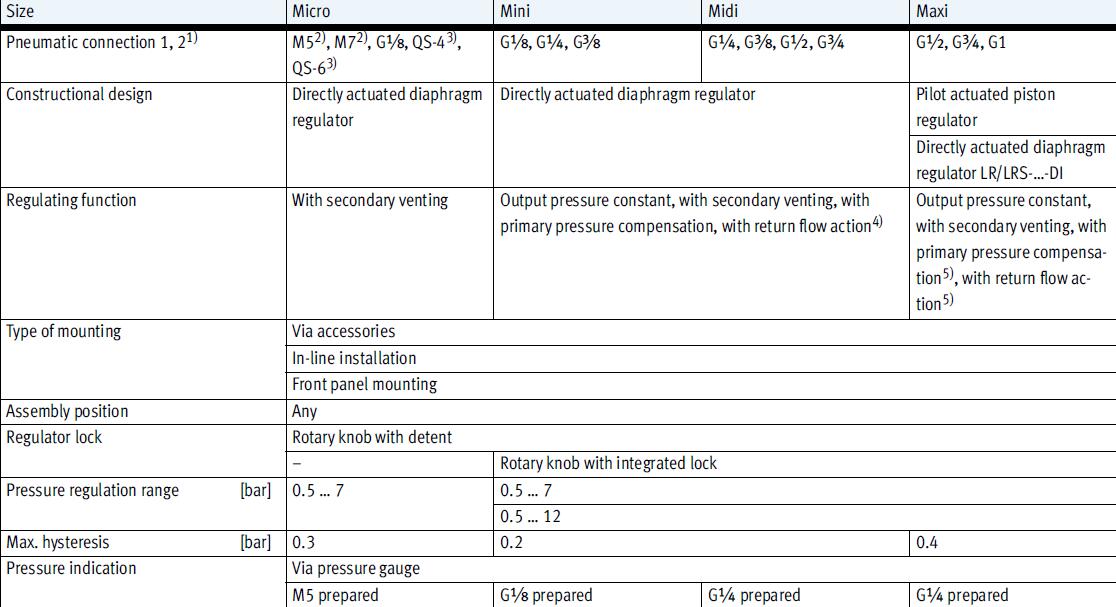

| Size | Micro | Mini | Mid | Max |
| Pneumatic connection | M52, M72, Gx, QS-43 | 1/8,1/4,3/8 | 1/4,3/8,1/2,3/4 | 1/2,3/4,1" |
| Design | Filter regulator with/without pressure gauge | |||
| Proportional standard mist lubricator | ||||
| Type of mounting | Via accessories | |||
| In-line installation | ||||
| Assembly position | Vertical ±5° | |||
| Grade of filtration [μm] | 5 | 5 | ||
| / | 40 | |||
| Air purity class at the output | Compressed air according to ISO 8573-1:2010 [6:8:–] (grade of filtration 5 μm) | |||
| / | Compressed air according to ISO 8573-1:2010 [7:8:–] (grade of filtration 40 μm) | |||
| / | Inert gases | |||
| Condensate drain | Manual rotary | |||
| Semi-automatic | Fully automatic | |||
