Description

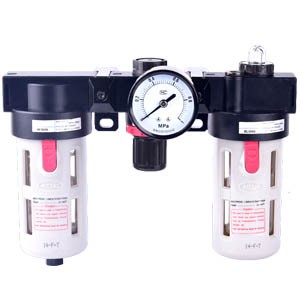

AC BC rfl pneumatic air combination unit
| Model | AC1000-M5 | AC2000-01 | AC2000-02 | AC2500-02 | AC2500-03 | AC3000-02 | AC3000-03 | |
| Module | Filter | AF1000 | AF2000 | AF2000 | AF2500 | AF2500 | AF3000 | AF3000 |
| Regulator | AR1000 | AR2000 | AR2000 | AR2500 | AR2500 | AR3000 | AR3000 | |
| Lubricator | AL1000 | AL2000 | AL2000 | AL2500 | AL2500 | AL3000 | AL3000 | |
| Port Size | M5×0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/4 | PT3/8 | |
| Pressure Gauge Port Size | M5×0.8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | |
| Rated Flow(L/Min) | 90 | 500 | 500 | 1500 | 1500 | 2000 | 2000 | |
| Working Media | Compressed Air | |||||||
| Proof Pressure | 1.5Mpa | |||||||
| Range of Regulation | 0.05~0.7Mpa | 0.05~0.85Mpa | ||||||
| Ambient Temperature | 5~60℃ | |||||||
| Filter Precision | 40 μ m(Normal)or 5 μ m(Customized) | |||||||
| Suggested Lubricating Oil | Turbine NO.1 Oil(ISO VG32) | |||||||
| Bracket(two) | Y10L | Y20L | Y30L | |||||
| Pressure Gauge | Y25-M5 | Y40-01 | ||||||
| Material | Body Material | Aluminum Alloy | ||||||
| Cup Material | PC | |||||||
| Cup Cover | AC1000~AC2000:without AC2500~AC5000:with(Iron) | |||||||
| Model | AC4000-03 | AC4000-04 | AC4000-06 | AC5000-06 | AC5000-10 | |
| Module | Filter Regulator | AF4000 | AF4000 | AF4000 | AF5000 | AF5000 |
| Regulator | AR4000 | AR4000 | AR4000 | AR5000 | AR5000 | |
| Lubricator | AL4000 | AL4000 | AL4000 | AL5000 | AL5000 | |
| Port Size | PT3/8 | PT1/2 | G3/4 | G3/4 | G1 | |
| Pressure Gauge Port Size | PT1/4 | PT1/4 | PT1/4 | PT1/4 | PT1/4 | |
| Rated Flow(L/Min) | 4000 | 4000 | 4500 | 5000 | 5000 | |
| Working Media | Compressed Air | |||||
| Proof Pressure | 1.5Mpa | |||||
| Range of Regulation | 0.05~0.85Mpa | |||||
| Ambient Temperature | 5~60℃ | |||||
| Filter Precision | 40 μ m(Normal)or 5 μ m(Customized) | |||||
| Suggested Lubricating Oil | Turbine NO.1 Oil(ISO VG32) | |||||
| Bracket(one) | Y40L | Y50L | Y60L | |||
| Pressure Gauge | Y50-02 | |||||
| Material | Body Material | Aluminum Alloy | ||||
| Cup Material | PC | |||||
| Cup Cover | AC1000~AC2000:without AC2500~AC5000:with(Iron) | |||||
