Description

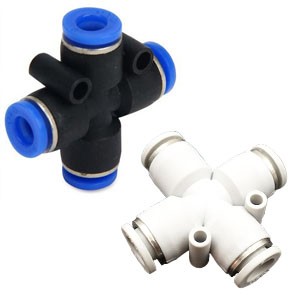

PXL union cross pneumatic connector
Inch tube | Metric tube | ΦD | E | F | Φd |
PXL5/32 | PXL-4 | 4 | 19 | 23 | 2.5 |
PXL/4 | PXL-6 | 6 | 21 | 16.5 | 3.5 |
PXL5/16 | PXL-8 | 8 | 23 | 19 | 4 |
PXL3/8 | PXL-10 | 10 | 27 | 22 | 4 |
PXL1/2 | PXL12 | 12 | 30.5 | 24 | 4 |
PXL union cross pneumatic connector
Inch tube | Metric tube | ΦD | E | F | Φd |
PXL5/32 | PXL-4 | 4 | 19 | 23 | 2.5 |
PXL/4 | PXL-6 | 6 | 21 | 16.5 | 3.5 |
PXL5/16 | PXL-8 | 8 | 23 | 19 | 4 |
PXL3/8 | PXL-10 | 10 | 27 | 22 | 4 |
PXL1/2 | PXL12 | 12 | 30.5 | 24 | 4 |
