Description

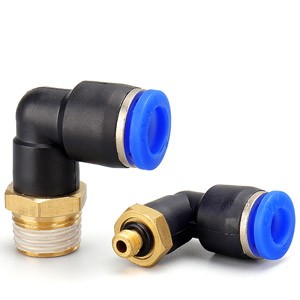

PL pneumatic male elbow connector
<td width="26" nowrap="" style="border-top: none; border-left: none; border-bottom: 1px solid windowtext; border-ri
Inch tube | Metric tube | D | R | A | B | H | E | φd |
PL5/32-M5 | PL 04-M5 | Ф4 | M5 | 3.5 | 17.5 | 8 | 18 | φ3.2 |
PL5/32-01 | PL 04-01 | Ф4 | 1/8 | 7 | 24.5 | 10 | 18.2 | φ3.2 |
PL5/32-02 | PL 04-02 | Ф4 | 1/4 | 9 | 27 | 14 | 18.2 | φ3.2 |
PL5/32-03 | PL 04-03 | Ф4 | 3/8 | 9 | 27 | 17 | 18.2 | |
PL1/4-M5 | PL 06-M5 | Ф6 | M5 | 3.5 | 18.4 | 8 | 20 | φ4 |
PL1/4-01 | PL 06-01 | Ф6 | 1/8 | 7 | 25.8 | 12 | 19.3 | φ4 |
PL1/4-02 | PL 06-02 | Ф6 | 1/4 | 9 | 28.8 | 14 | 19.3 | φ4 |
PL1/4-03 | PL 06-03 | Ф6 | 3/8 | 9 | 28.3 | 17 | 19.3 | φ4 |
PL1/4-04 | PL 06-04 | Ф6 | 1/2 | 11 | 30.8 | 21 | 19.3 | φ4 |
PL5/16-01 | PL 08-01 | Ф8 | 1/8 | 7 | 27.7 | 14 | 21.7 | φ4 |
PL5/16-02 | PL 08-02 | Ф8 | 1/4 | 9 | 30 | 14 | 21.7 | φ4 |
PL5/16-03 | PL 08-03 | Ф8 | 3/8 | 9 | 30 | 17 | 21.7 | φ4 |
PL5/16-04 | PL 08-04 | Ф8 | 1/2 | 11 | 34 | 21 | 21.7 | φ4 |
PL3/8-01 | PL 10-01 | Ф10 | 1/8 | 7 | 33 | 17 | 27 | φ4.5 |
PL3/8-02 | PL 10-02 | Ф10 | 1/4 | 9 | 35 | 17 | 27 | φ4.5 |
PL3/8-03 | PL 10-03 | Ф10 | 3/8 | 9 | 35 | 17 | 27 | φ4.5 |
PL3/8-04 | PL 10-04 | Ф10 | 1/2 | 11 | 38 | 21 | 27 | φ4.5 |
PL1/2-01 | PL 12-01 | Ф12 | 1/8 | 7 | 34.8 | 21 | 29.3 | φ4.5 |
PL1/2-02 | PL 12-02 | Ф12 | 1/4 | 9 | 36.3 | 21 | 29.3 | φ4.5 |
PL1/2-03 | PL 12-03 | Ф12 | 3/8 | 9 | 37.3 | 21 | 29.3 | φ4.5 |
PL1/2-04 | PL 12-04 | Ф12 | 1/2 | 11 | 38.8 | 21 | 29.3 | φ4.5 |
