Description

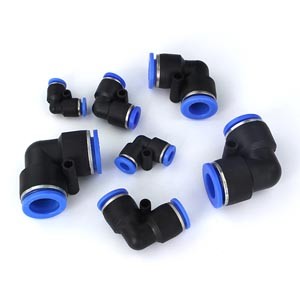

PV series union elbow connector
Model | ΦD | E | Φd |
PV-4 | 4 | 18.5 | / |
PV-6 | 6 | 20.5 | 3.5 |
PV-8 | 8 | 23 | 4.5 |
PV-10 | 10 | 28 | 4 |
PV-12 | 12 | 30.5 | 5 |
PV-14 | 14 | 31 | 4 |
PV-16 | 16 | 34.5 | 4 |
PV series union elbow connector
Model | ΦD | E | Φd |
PV-4 | 4 | 18.5 | / |
PV-6 | 6 | 20.5 | 3.5 |
PV-8 | 8 | 23 | 4.5 |
PV-10 | 10 | 28 | 4 |
PV-12 | 12 | 30.5 | 5 |
PV-14 | 14 | 31 | 4 |
PV-16 | 16 | 34.5 | 4 |
