Description

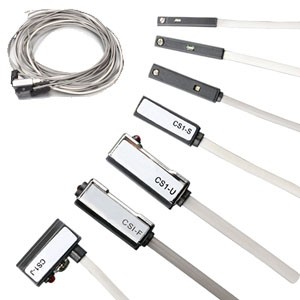

CS1 series magnetic induction switch pneumatic
Model: CS1-F, CS1-U, CS1-S, CS1-J, CS1-G, CS1-M
Switch type: magnetic spring pipe with connection point
Working voltage 5~240V DC/AC
Max switch current: max 100MA
Max loading capacity: max 10W
Residual voltage drop: max 2.5V
Indicator: Green LED / Red Led
Cable length: 2 meter
Sensitivity: 60 gaussian
Max switching frequency: 200Hz
Operating temperature range: -10~70
Impact withstand: 30G
Vibration withstand: 9G
Protection lever: IP67
Working life: 1,000,000 times
CS1-F for cylinder mode: SC, MAL, MA, CM2, CJ2, C85
CS1-U for cylinder mode: SC, MAL, MA, CM2, CJ2, C85
CS1-S for cylinder mode: MAL, MA, CM2, CJ2, C85
CS1-J for cylinder mode: SDA, TN
CS1-G: SDA, STMB
CS1-M: DNC, CXS, ADVU, MHZ2
