Description

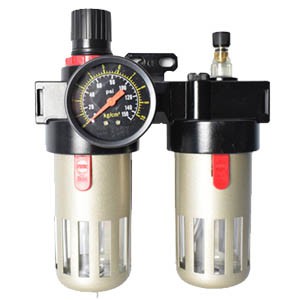

AFC BFC rfl pneumatic air combination unit regulator mini festo filter smc
| Model | AFC1500 | AFC2000 | BFC2000 | BFC3000 | BFC4000 |
| Working medium | AIR | ||||
| Port size | G1/8 | G1/4 | G1/4 | G3/8 | G1/2 |
| Filter precision | 40um(5um is optional) | ||||
| Adjusting pressure range | 0.05~0.85Mpa | ||||
| Max.Adjusting pressure | 0.95Mpa | ||||
| Guaranteed.pressure | 1.5Mpa | ||||
| Working temperature | 5~60°C | ||||
| Filter bowl capacity | 15(CC) | 60(CC) | |||
| Lubricator bowl capacity | 25(CC) | 90(CC) | |||
| Recommended Oil | ISO VG32 or equicalent Oil | ||||
| Weight | 0.7kg | 0.9kg | |||
| Filter Regulator | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 |
