Description

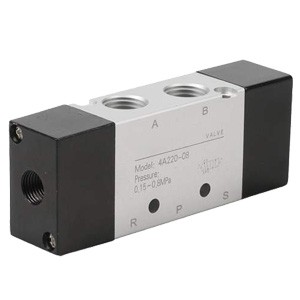

4A2 series air control pulse valve pneumatic
Model: 4A210, 4A220, 4A230C, 4A230E, 4A230P
Media: Air
Action mode: Exterior control
Position: 5/2 port, 5/3 port
10: single coil double position
20: Double coil double position
30C: Double coil three position closed type
30E: Double coil three position exhaust type
30P: Double coil three position pressurized type
Working pressure: 0.15 -0.8Mpa
Proof pressure: 1Mpa
Working temperature: 0-60℃
Effective sectional area: 12mm2(Cv=0.67), 14mm2(Cv-0.78)
Valve port size: input=output=G1/4, exhaust port=G1/8, input=output=exhaust port=G1/8
Max operating frequency: 3 Cycle and 5 cycle per second
