Description

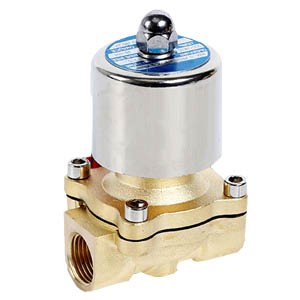

2WG series solenoid valve pneumatic
Model: 2WG025-08, 2WG040-10, 2WG160-15, 2WG200-20, 2WG250-25, 2WG350-35, 2WG400-40, 2WG500-50
Media: water,air,steam
Action mode: direct acting / pilot operated type
Working pressure: 0-0.7Mpa
Proof pressure: 1Mpa
Working temperature: -5 to +85℃
Valve port size: G1/4, G3/8, G1/2, G3/4, G1, G1-1/4, G1-1/2, G2
CV value: 0.23, 0.6, 4.8, 7.6, 12, 24, 29, 48
Valve port diameter mm2: 2.5, 4, 16, 20, 25, 35, 40, 50
Coil power: 15VA, 20VA, 50VA
Working voltage: DC12V,DC24V,AC24V,AC110V,AC220V,AC380V
