Description

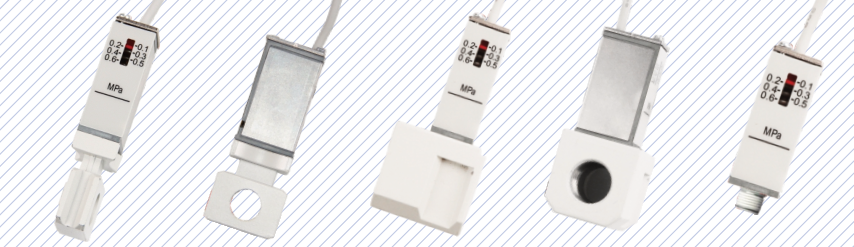

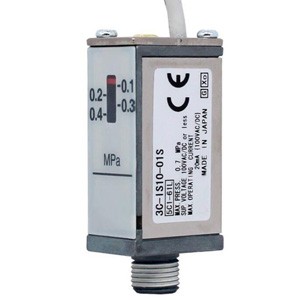

Shinyee SMC type IS10 pneumatic pressure switch air Branch guide block
| Ordering code | |||||||
| IS10 | - | 30 | - | 02 | |||
| Series No. | Installation specifications | Shell size | Thread type | Thread size interface | Set pressure range | ||
| Blank:Thread installation | 20 | Blank:RC | 01/02 | Default specifications | |||
| M:Installation of connecting bracket | 30 | N:NPT | 02/03 | 0.1~0.4Mpa | |||
| 40 | F:G | 03/04 | 6:0.1~0.4Mpa | ||||
| Common specification | |
| Model | IS10 |
| Medium | Air and Inert gas |
| Ensure pressure resistance | 1.0Mpa |
| Maximum working pressure | 0.7Mpa |
| Set pressure range | 0.1-0.4Mpa |
| Environmetal temperature and working meduim temperature | -5℃~60℃ |
| Electric shock composition | 1a |
| Scale error | below±0.05Mpa |
| Delaying | below 0.08Mpa |
| Repeat accuracy | below±0.05Mpa |
| Wiring specifications | Outlet cable:2M |
| Protection structure | Equivalent to IP40 |
| Port size | 1/8 |
| Weight | 62g |

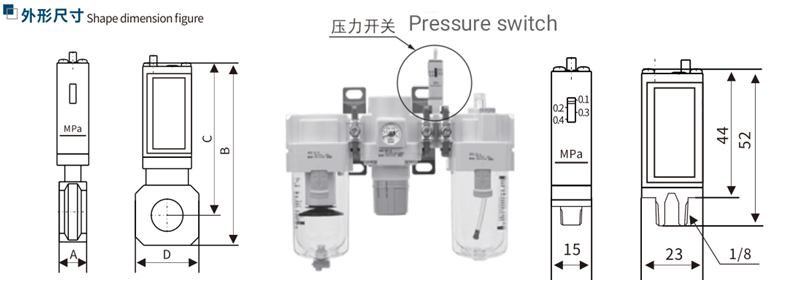

Dimension
| Model | A | B | C | D | Applicable Model |
| IS10M-20 | 11 | 74 | 64 | 28 | AC20 |
| IS10M-30 | 13 | 85 | 71 | 30 | AC30 |
| IS10M-40 | 15 | 93 | 75 | 36 | AC40 |
| IS10M-50 | 22 | 91 | 67 | 53 | AC50 |
| IS10M-60 | 22 | 91 | 67 | 53 | AC60 |

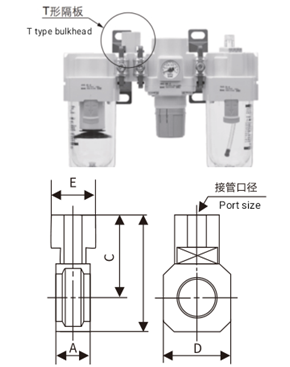

| Model | Port size | A | B | C | D | E | Applicable model |
| 1S10E-20-01 | 1/8 | 30 | 66 | 55 | 28 | 16 | AC20 AR20 AW20 |
| 1S10E-20-02 | 1/7 | ||||||
| 1S10E-20-02 | 1/4 | 32 | 73 | 59 | 30 | 13 | AC25 AC30 AR20 AR30 AW20 |
| 1S10E-20-03 | 3/8 | ||||||
| 1S10E-20-03 | 3/8 | 32 | 79 | 61 | 37 | 13 | AC40 AR40 AW40 |
| 1S10E-20-04 | 1/2 |
| Model | Port size | A | B | C | D | E | Applicable model |
| Y110-M5-A | M5*0.8 | 11.2 | 19 | 12 | 14 | 8 | AC10 |
| Y210-01-A | 1/8 | 14.6 | 41.8 | 32 | 28 | 19 | AC20 |
| Y210-02-A | 1/4 | ||||||
| Y310-01-A | 1/4 | 14.6 | 52.7 | 38.7 | 30 | 19 | AC30 |
| Y310-02-A | 1/4 | ||||||
| Y410-02-A | 1/4 | 18.6 | 62 | 44 | 36 | 24 | AC40 |
| Y410-03-A | 3/8 | ||||||
| Y610-03-A | 3/8 | 22 | 81 | 57 | 53 | 30 | AC50/AC60 |
| Y610-04-A | 1/2 |
| Model | A | B | C | D | Applicable Model |
| IS10M-20 | 11 | 74 | 64 | 28 | AC20 |
| IS10M-30 | 13 | 85 | 71 | 30 | AC30 |
| IS10M-40 | 15 | 93 | 75 | 36 | AC40 |
| IS10M-50 | 22 | 91 | 67 | 53 | AC50 |
| IS10M-60 | 22 | 91 | 67 | 53 | AC60 |
