Description

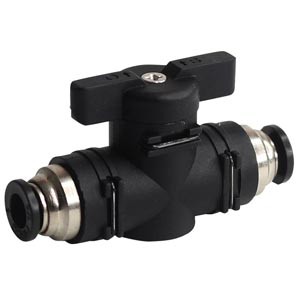

UC series hand valve connector
Model | ΦD | A | B | ΦC | E | F | L |
UC-4 | 4 | 9 | 36 | 16.5 | 5 | 32 | 51.5 |
UC-6 | 6 | 9 | 36 | 16.5 | 5 | 32 | 52.5 |
UC-8 | 8 | 9 | 36 | 16.5 | 5 | 32 | 53.5 |
UC-10 | 10 | 12.5 | 44 | 24.5 | 5.5 | 41.5 | 72 |
UC-12 | 12 | 12.5 | 44 | 24.5 | 5.5 | 41.5 | 72 |
UC series hand valve connector
Model | ΦD | A | B | ΦC | E | F | L |
UC-4 | 4 | 9 | 36 | 16.5 | 5 | 32 | 51.5 |
UC-6 | 6 | 9 | 36 | 16.5 | 5 | 32 | 52.5 |
UC-8 | 8 | 9 | 36 | 16.5 | 5 | 32 | 53.5 |
UC-10 | 10 | 12.5 | 44 | 24.5 | 5.5 | 41.5 | 72 |
UC-12 | 12 | 12.5 | 44 | 24.5 | 5.5 | 41.5 | 72 |
