Description

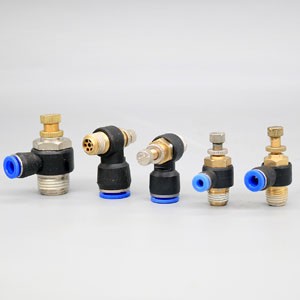

SL Pneumatic throttle valve flow control fitting
Inch tube | Metric tube | D1 | D2 | B | F | J | A | J |
SL5/32-M5 | SL 04-M5 | Ф4 | M5 | 16.5 | 20 | 11.7 | 3.5 | 8 |
SL5/32-01 | SL 04-01 | Ф4 | 1/8 | 24.5 | 41.5 | 13 | 7.5 | 10 |
SL5/32-02 | SL 04-02 | Ф4 | 1/4 | 28.7 | 25.8 | 14.6 | 9 | 14 |
SL1/4-M5 | SL 06-M5 | Ф06 | M5 | 16.5 | 20 | 18.6 | 3.5 | 8 |
SL1/4-01 | SL 06-01 | Ф06 | 1/8 | 24.5 | 22.5 | 22.2 | 7.5 | 10 |
SL1/4-02 | SL 06-02 | Ф6 | 1/4 | 28.7 | 24.7 | 11.7 | 9 | 14 |
SL1/4-03 | SL 06-03 | Ф6 | 3/8 | 33.4 | 26.6 | 13 | 10 | 19 |
SL1/4-04 | SL 06-04 | Ф6 | 1/2 | 38.5 | 29.7 | 14.6 | 3.5 | 24 |
SL5/16-01 | SL 08-01 | Ф8 | 1/8 | 24.5 | 25.5 | 18.6 | 7.5 | 10 |
SL5/16-02 | SL 08-02 | Ф8 | 1/4 | 28.7 | 27.3 | 22.2 | 9 | 14 |
SL5/16-03 | SL 08-03 | Ф8 | 3/8 | 33.4 | 28.7 | 11.7 | 10 | 19 |
SL5/16-04 | SL 08-04 | Ф8 | 1/2 | 38.5 | 32 | 13 | 12.5 | 24 |
SL3/8-01 | SL 10-01 | Ф10 | 1/8 | 24.5 | 29.8 | 14.6 | 7.5 | 10 |
SL3/8-02 | SL 10-02 | Ф10 | 1/4 | 28.7 | 31.7 | 19.8 | 9 | 14 |
SL3/8-03 | SL 10-03 | Ф10 | 3/8 | 33.4 | 32.6 | 22.8 | 10 | 19 |
SL3/8-04 | SL 10-04 | Ф10 | 1/2 | 38.5 | 35.2 | 24.8 | 12.5 | 24 |
SL1/2-01 | SL 12-01 | Ф12 | 1/8 | 24.5 | 31 | 20.3 | 7.5 | 10 |
SL1/2-02 | SL 12-02 | Ф12 | 1/4 | 28.7 | 33 | 22.3 | 9 | 14 |
SL1/2-03 | SL 12-03 | Ф12 | 3/8 | 33.4 | 36.7 | 24.2 | 10 | 19 |
SL1/2-04 | SL 12-04 | Ф12 | 1/2 | 38.5 | 36.8 | 25.2 | 12.5 | 24 |
