Description

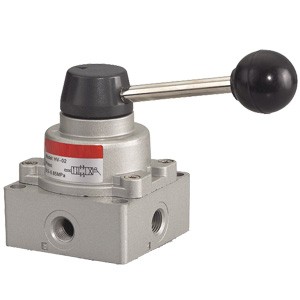

HV series hand valve pneumatic
Ordering code
| HV | / | 4 |
| Model | Port size | |
| 02: 1/4 | ||
| 03: 3/8 | ||
| 04: 1/2 |
Specifications
| Model | HV-02 | HV-03 | HV-04 | |
| Working medium | Air | |||
| Action type | Direct action | |||
| Connect tube size | 1/4" | 3/8" | 1/2" | |
| Working pressure range | 0~8.0kgf/cm2 | |||
| Working temperature range | 0~60℃ | |||
| Lubricating | No need | |||
| Main parts material | Body | Aluminum alloy | ||
| Sealing ring | NBR | |||
