Description

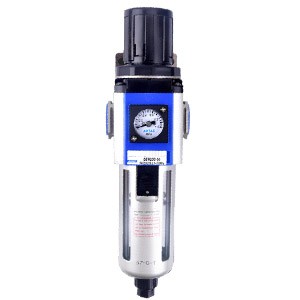

GFR series filter regulator valve pneumatic
| Model | GFR200-06 | GFR200-08 | GFR300-08 | GFR300-10 | GFR300-15 | GFR400-10 | GFR400-15 | GFR600-20 | GFR600-25 | |
| Fluid | Air | |||||||||
| Port size | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 1/2'' | 3/4'' | 1'' | |
| Filtering grage | 40 µ m or 5 µ m | |||||||||
| Pressure rang | Semi-auto and automatic drain: 0.15~0.9MPa(20~130psi); Manual drain:0.05~0.9MPa(7~130psi) | |||||||||
| Capacity of drain bowl | 10CC | 40CC | 80CC | 230CC | ||||||
| Capacity of oil bowl | 25CC | 75CC | 160CC | 280CC | ||||||
| Temperature range | -5~70℃ | |||||||||
