Description

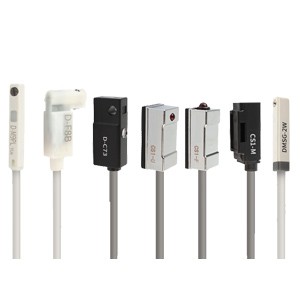

D series magnetic induction switch pneumatic
Model: D-C73, D-A54, D-Z73, D-A93, D-A73
D-C73 compatible cylinder type: CDM2B, MA, C85, MAL
D-A54 compatible cylinder type: STMS, CRQ1, CDRA1
D-Z73 compatible cylinder type:: C85, MGP, MHS bore: 6~20, CY1R/CY3R bore: 25~63
D-A93 compatible cylinder type: CQ2, CQS, CDU, MXH, MXQ, MXS, MSQB, CRQ2, MK, CSL®, MHZ2, MHS bore: 6~20, CY1R/CY3R bore: 6~20
D-A73: CQ2
Switch type: magnetic spring pipe with connection point
Working voltage: 5~120V DC/AC
Max switch current: 100MA
Max loading capacity: 10W
Residual voltage drop: 2.5V
Indicator Red LED
Cable length: 2 meter
Sensitivity: 60 Gaussian
Max switching frequency: 1000Hz
Operation temperature range: -10~70℃
Impact withstand: 30G
Vibration withstand: 9G
Protection level: IP67
Working life: 1,000,000 times
